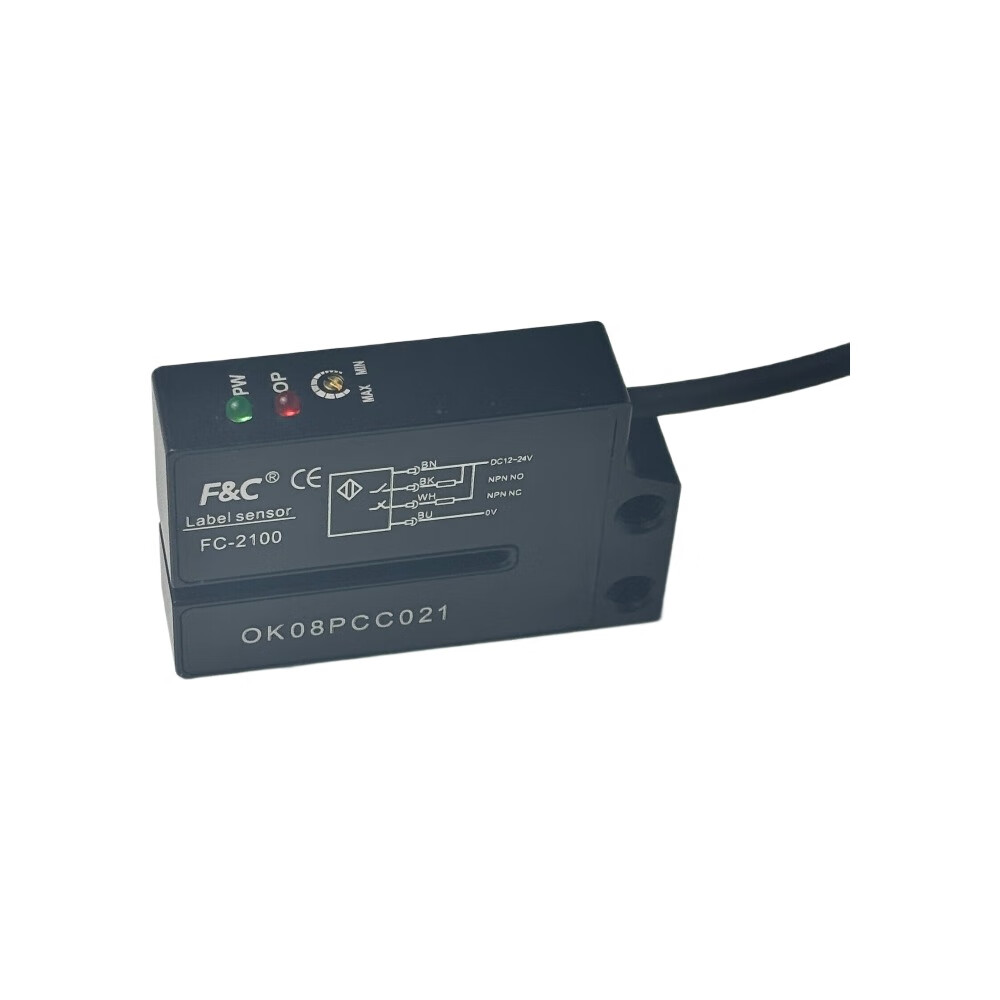

FC-2100
Photoelectric Label Sensor
Operating voltage
12～24VDC±10%
Slot Width Detection
2.5mm
Groove Depth Inspection
40mm
Detectable Objects
Non-transparent label
Current consumption
＜15mA
显示所有主要功能
面价登录
¥294.8 CNY
预计可订
可订
您对产品有任何疑问吗? 联系我们.
产品配置
Detectable Objects:
Non-transparent label
Transparent Label
Slot Width Detection:
2mm
5mm
2.5mm
Groove Depth Inspection:
70mm
40mm
Output Mode:
PNP.NO.NC
NPN.NO.NC
NPN.NC+PNP.NC
Connection Method:
Direct cable outlet type
M8 connector type
Connecting Cable Specifications:
4.0 4-Core 2M Female Connector Cable
None
4.0 Four-core 2M Flexible Wire
主要特征
下载
产品描述
产品参数
规格参数
规格参数
| Detectable Objects | Non-transparent label |
|---|---|
| Slot Width Detection | 2.5mm |
| Groove Depth Inspection | 40mm |
| Output Mode | NPN.NO.NC |
| Connection Method | Direct cable outlet type |
| Connecting Cable Specifications | 4.0 Four-core 2M Flexible Wire |
